Tool Hanging Rack With Pegboard And Storage Bins

Product Introduction

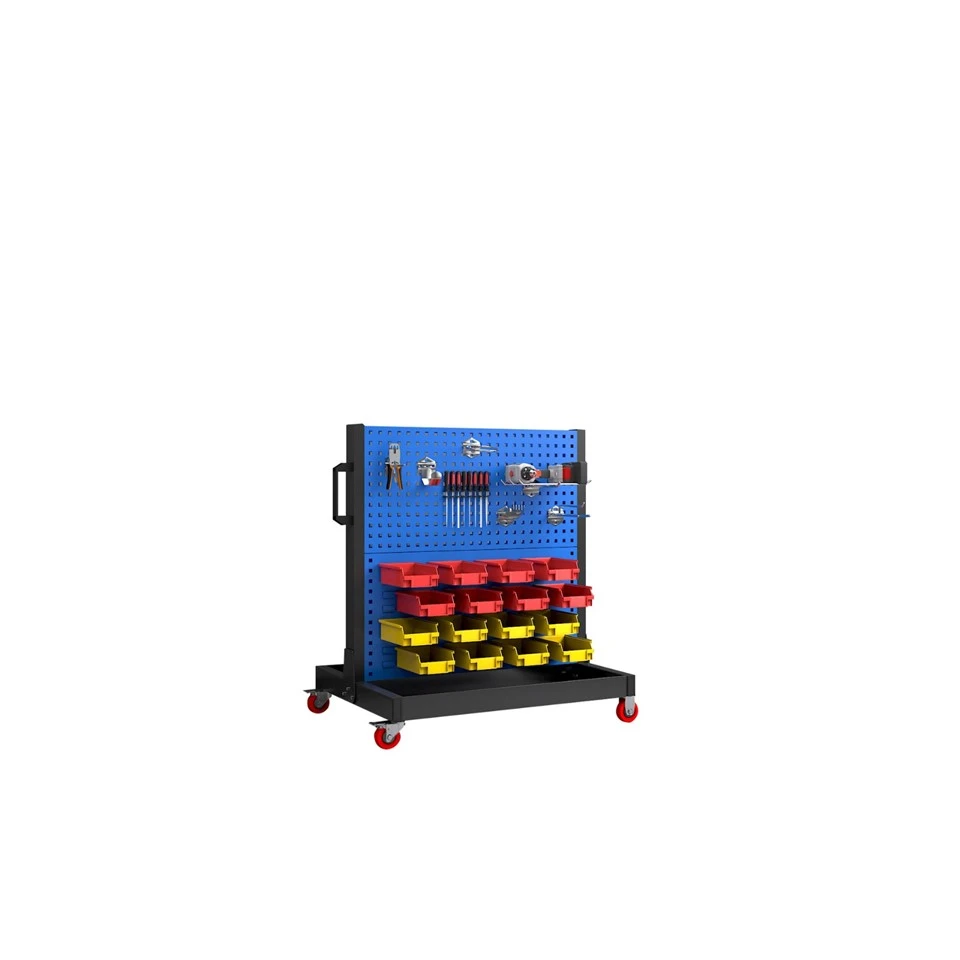

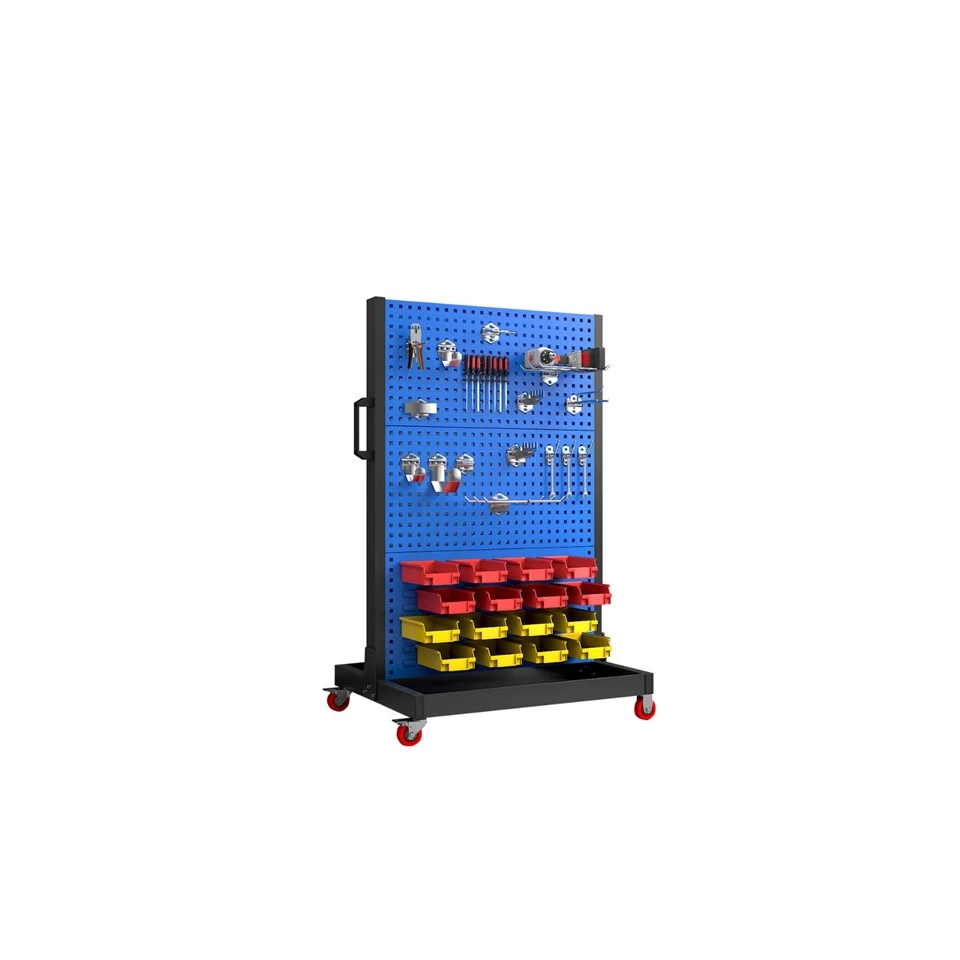

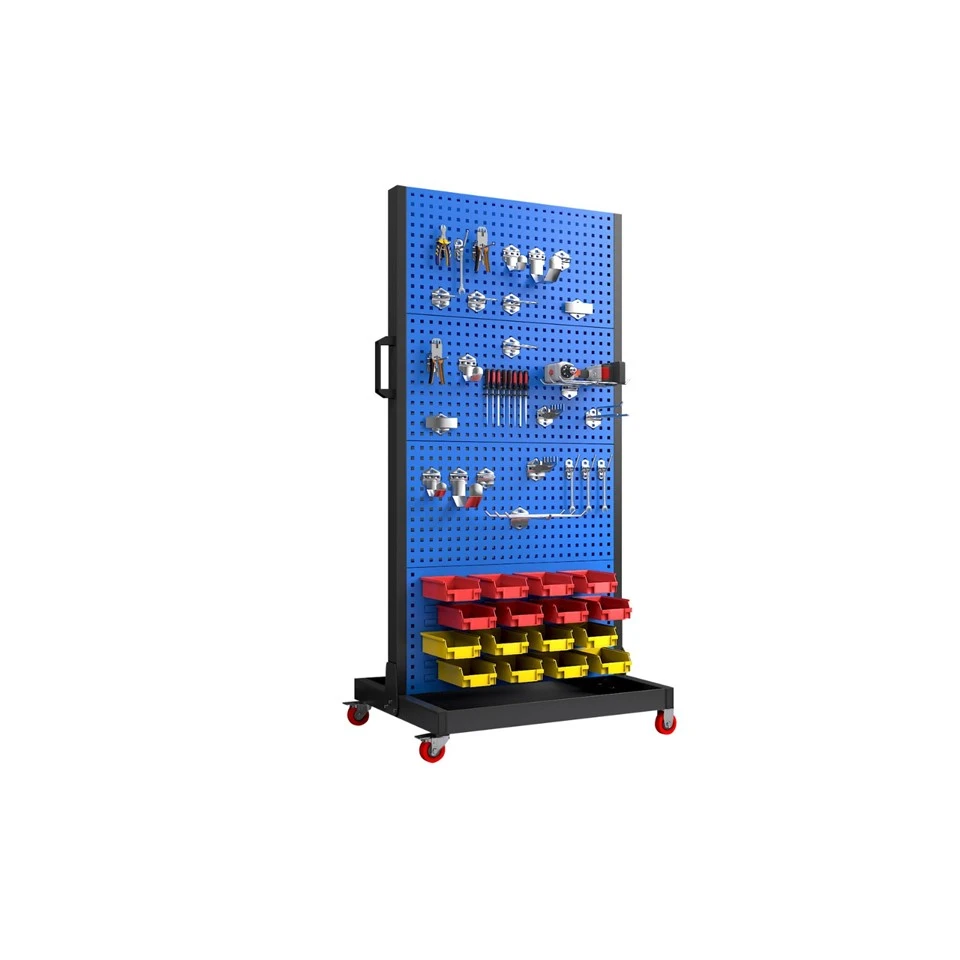

In a commercial print shop, a missing 10mm wrench during a press run can cost thousands in downtime. That's exactly why we engineered this JY-TR18 tool hanging rack. The standard footprint is H1800 x W1000 x D500 mm. It combines a large steel pegboard with multiple storage bins, so you can hang heavy tools like paper guillotine blades and folding machine jigs, while keeping small parts like nozzles and sensors organized. The frame is built from cold-rolled steel, available in 0.5mm to 1.0mm thickness, with an eco-friendly powder coating that resists ink solvents and moisture. It ships knocked-down to keep your ocean freight costs low.

Product Feature and Application
The core of this rack is the pegboard. We punch the holes with a 6mm diameter and a tight 25mm spacing. This allows you to hang heavy torque wrenches and plate gauges without the pegboard sagging. Below the pegboard, you have your choice of 2, 3, or 4 tiers of storage bins-perfect for sorting small press parts that would otherwise get lost in a paper stack.

We offer both single-sided and double-sided configurations. For narrow press aisles, the single-sided version sits flush against the wall. For large finishing rooms, the double-sided version maximizes storage density.

The mobility options are also customizable. You can choose the mobile version with four heavy-duty casters (two with brakes) for moving between printing presses, or the stationary version with adjustable foot pads for a permanent workstation. The casters are critical in a print shop-when a fully loaded rack is pushed over an epoxy floor, the brakes must lock it firmly so it doesn't roll into a running press.

Production Details
Here is the real manufacturing headache with pegboard racks: hole punching tolerance. If the hole spacing on the pegboard is off by even 0.5mm, heavy tools will cause the board to bow, and the hooks will slide out of position. Our CNC turret punch machines punch all holes simultaneously with a tolerance of ±0.2mm, ensuring the pegboard stays perfectly flat even under heavy loads.

Another issue is the storage bin spot-welding. In a high-vibration environment like a print shop, cheap spot welds on the bins will crack within a year. We increase the steel thickness on the bin side walls to 0.8mm and use a reinforced weld pattern. Before the powder coat is applied, we run a full phosphating wash, because printing shops use solvent-based cleaning agents that will attack a cheap paint finish.

Product Qualification
We don't just test empty racks. We hang 100kg of dead weight on the pegboard and leave it for 72 hours to check for board deflection. The casters are cycle-tested for 10,000 push-pull movements on a simulated epoxy floor. The powder coating undergoes a 500-hour salt spray test and a solvent resistance test to guarantee it won't blister in a print shop environment. For sea freight, the flat-packed cartons are drop-tested from 80cm to ensure the steel edges and bin brackets arrive perfectly straight.

Deliver, Shipping and Serving
We flat-pack the pegboard panels, bins, and hardware into a compact carton, cutting your ocean freight volume by half. A 40HQ container loads roughly 400 units. On-site, two workers can assemble the rack in about 20 minutes using the included hardware kit. No special tools are required.

For multi-press printing facilities, we supply keyed-alike lock systems (optional) so the shift supervisor can secure high-value tools. We support custom RAL colors to match your shop's branding and OEM logo printing on the top surface. A 1.5% spare parts kit (pegboard hooks, bin brackets, and caster wheels) is included in every bulk order.

FAQ
Q: Can the storage bins be removed for cleaning?
A: Yes. The bins are mounted on slotted brackets, so you can lift them out for cleaning or repositioning.
Q: How much weight can the pegboard hold?
A: The reinforced pegboard is rated to hold up to 80kg of tools when the weight is evenly distributed across the panel.
Q: Are the casters suitable for uneven print shop floors?
A: The polyurethane wheels are designed for smooth rolling on epoxy and concrete floors, and the brakes lock firmly to prevent the rack from sliding.

Latest News
Our tooling workshop recently upgraded the CNC punch dies for the pegboard holes. The new dies produce a cleaner, more precise hole edge, which has significantly increased the lifespan of the pegboard hooks and eliminated the issue of heavy tools slipping off the rack.
