4-Drawer 1-Door Tool Cart

Product Introduction

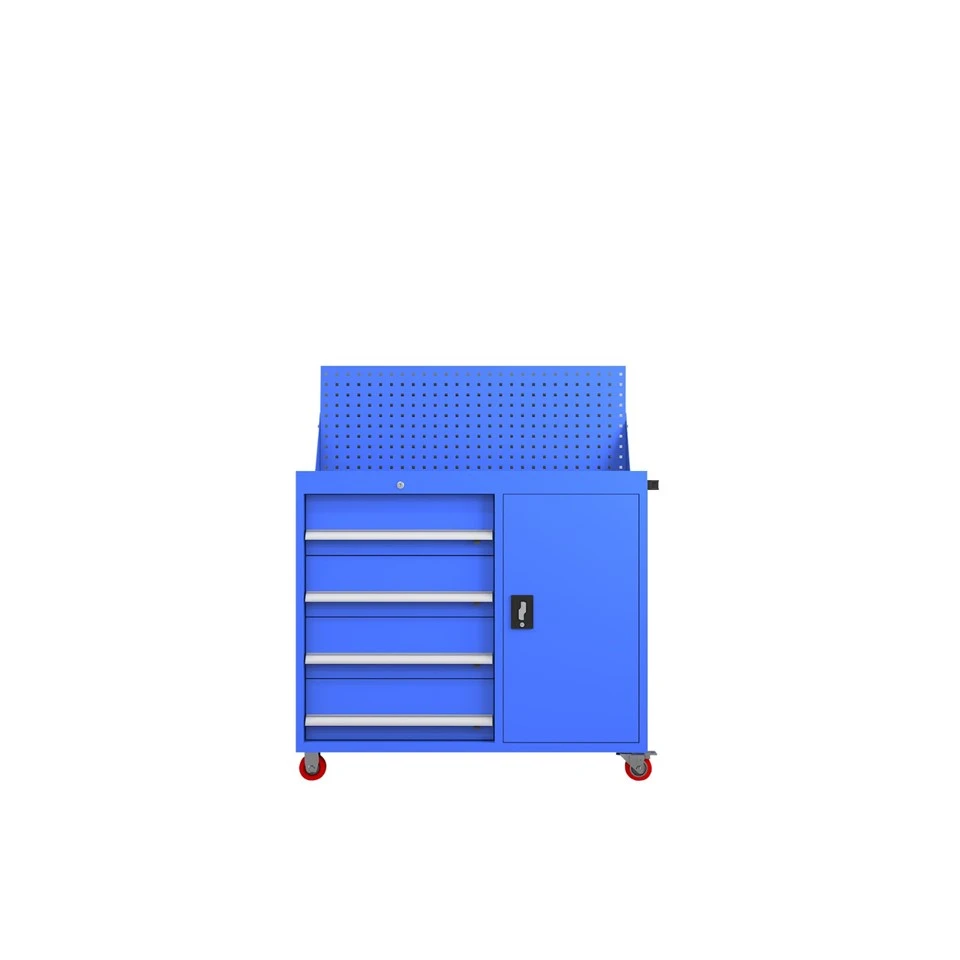

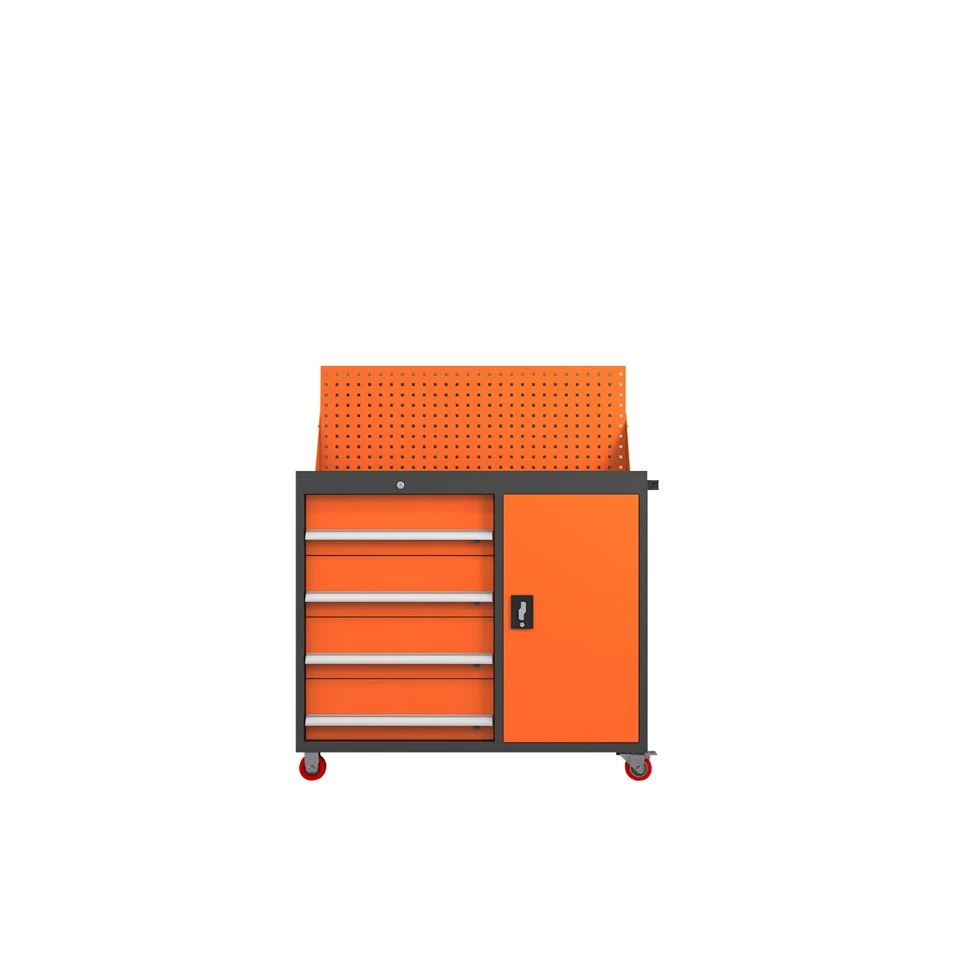

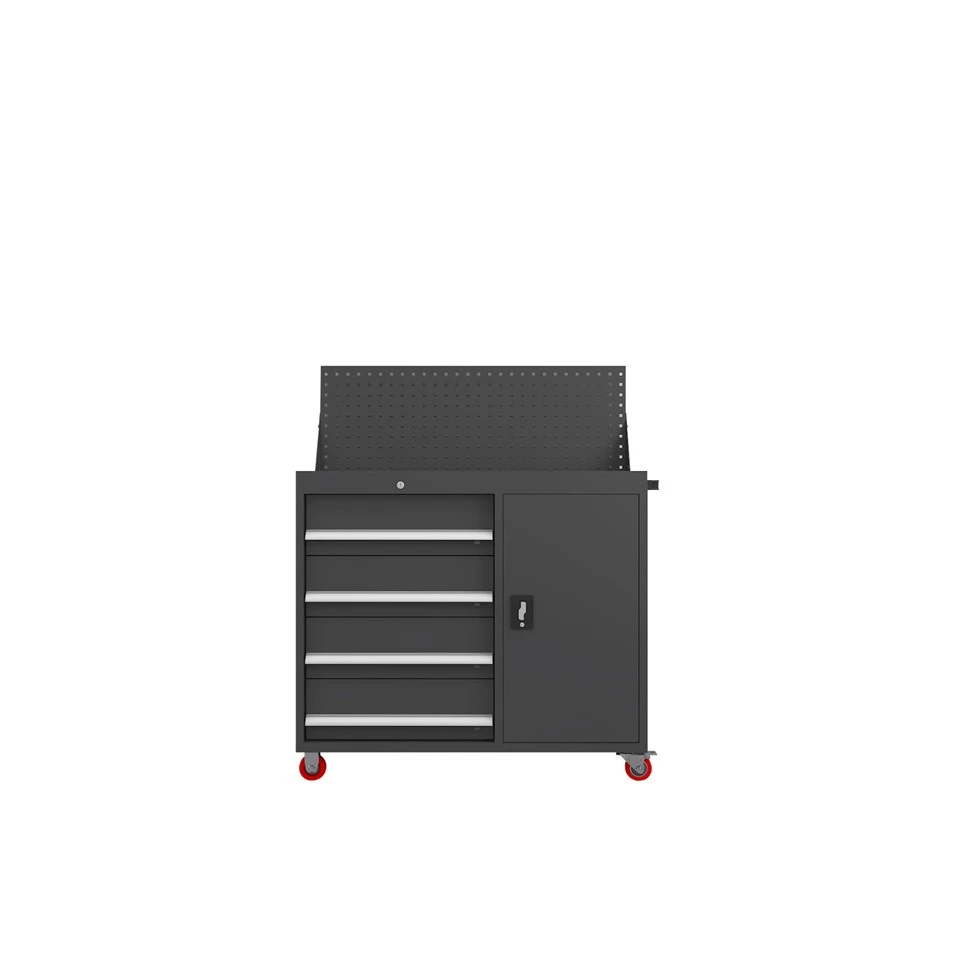

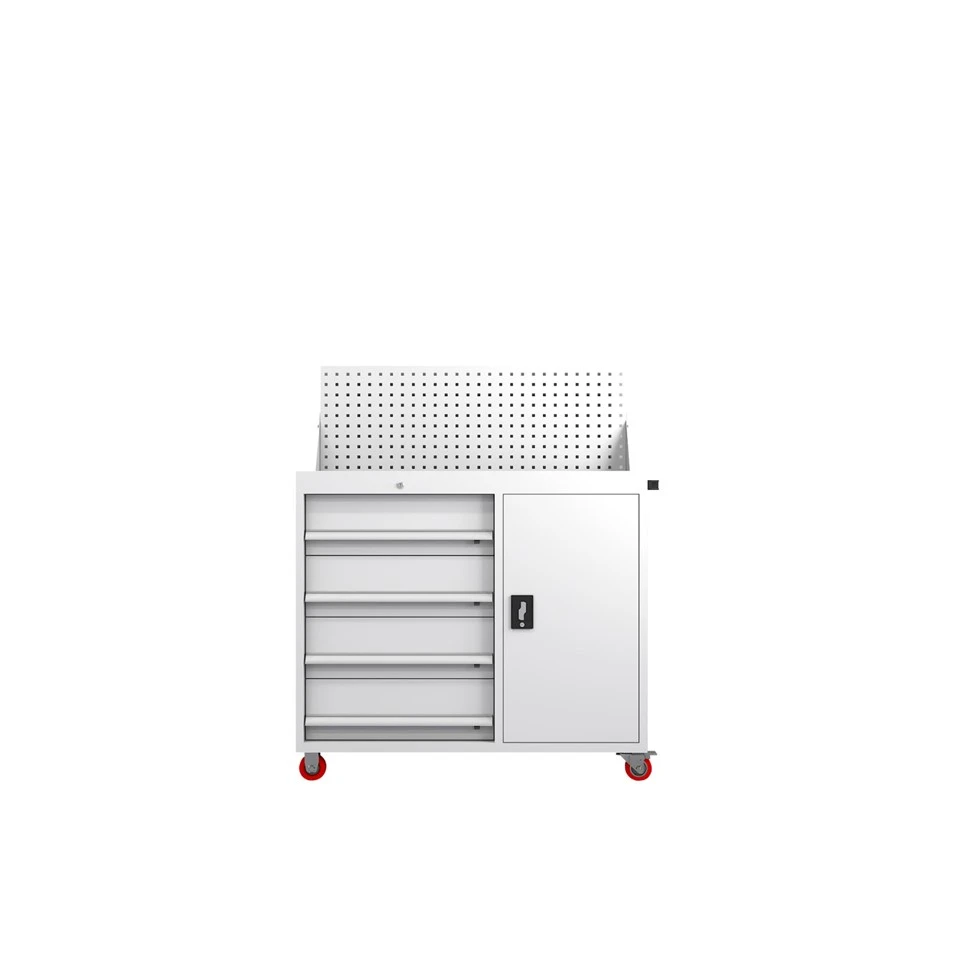

If you've ever managed a busy garage or maintenance bay, you know the dilemma: technicians need quick access to small hand tools, but they also need secure storage for larger equipment and bulky supplies. Carts with only drawers waste space on big items, while open cabinets make small tools hard to find. That's exactly why we engineered this JY-TC41 4-Drawer 1-Door Tool Cart. The standard footprint is H950 x W750 x D480 mm. It combines four full-width drawers for hand tools with a single-door bottom cabinet for larger items, plus a top storage tray or lid compartment. It is built from high-quality cold-rolled steel with a thickness of 0.8 mm to 1.2 mm depending on the load requirements. The surface uses an eco-friendly matte powder coating that resists oil, scratches, and corrosion. It ships in a modular knocked-down structure to save on ocean freight, and is available in standard colors like black, orange, white, and blue (as shown in our product line).

Product Feature and Application

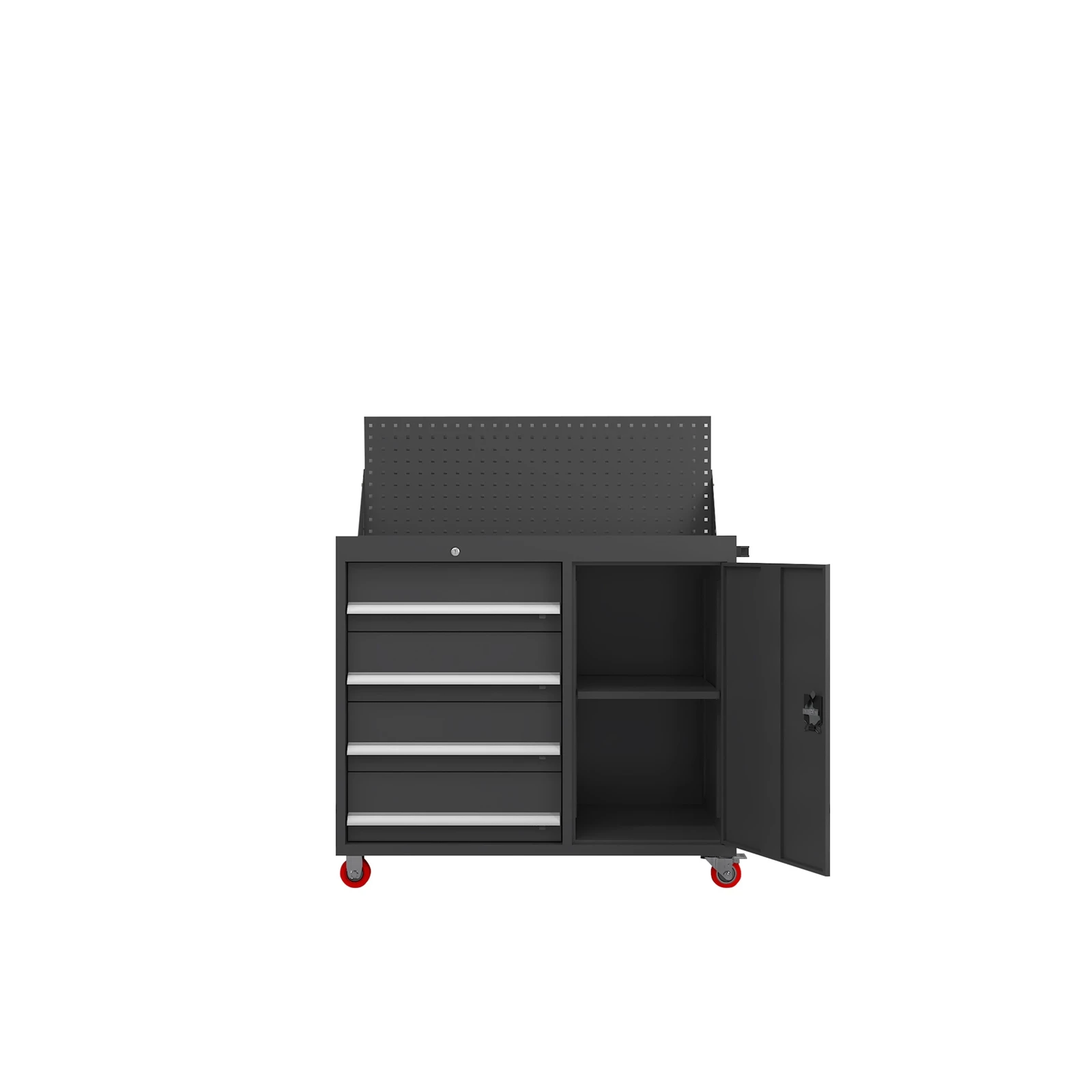

The core feature here is the mixed storage layout. The top four drawers run on smooth ball-bearing slides, allowing technicians to organize sockets, wrenches, and diagnostic tools by category. The lower single-door cabinet features an adjustable shelf, providing ample vertical space for power tools, hydraulic parts, or bulk supplies. The top of the cart is equipped with a raised tray or lid, creating a secure and convenient staging area for tools currently in use.

The mobility system uses four heavy-duty casters, two of which are fitted with foot brakes. Once the brake is engaged, the cart stays firmly in place, even when a heavy bottom door is opened or a loaded drawer is pulled out. For security, the cart features a central locking system. One key secures all four drawers and the bottom cabinet door simultaneously, keeping expensive tools safe at the end of the shift.

Typical applications include automotive repair bays, industrial maintenance shops, warehouse assembly lines, and home garages.

Production Details

Here is the real manufacturing headache with mixed drawer and door carts: lock bar alignment. Because a single central lock must control both the sliding drawers and the swinging door, any slight misalignment in the frame during assembly will cause the locking mechanism to bind. If the factory uses standard spot welding without a rigid jig, the door won't close smoothly, or the drawers won't lock. We use laser-guided welding jigs to ensure the chassis remains perfectly square. Additionally, we precision-machine the internal lock bar linkage to guarantee smooth operation for both the drawers and the door.

Another issue is the top tray. If the top is welded flat without reinforcement, it will dent when heavy tools are dropped on it. We integrate a reinforced steel underframe beneath the top tray to absorb impact and support heavy loads.

Product Qualification

We don't just test empty carts. We load each drawer with 45 kg of solid steel weights and the bottom cabinet with 80 kg, then cycle the drawers and door 10,000 times to check for slide fatigue, hinge wear, and lock mechanism failure. The powder coating undergoes a 500-hour salt spray test to guarantee it won't rust in humid or oily environments. For sea freight, the flat-packed cartons are drop-tested from 80 cm to ensure the steel edges and corners arrive perfectly straight.

Deliver, Shipping and Serving

We flat-pack the panels, drawers, casters, and hardware into a compact carton, cutting your ocean freight volume by half compared to fully assembled units. A 40HQ container loads roughly 380 units. On-site, two workers can assemble the cart in about 20 minutes using the included hardware kit.

For distributors and multi-bay facilities, we supply keyed-alike lock systems so one master key can open every cart in the building. We support custom RAL colors and OEM logo printing on the top surface. A 1.5% spare parts kit (caster wheels, lock cylinders, slide clips, and door hinges) is included in every bulk order.

FAQ

Q: Can the drawers and the bottom door be locked together?
A: Yes. The central key lock controls all four drawers and the bottom cabinet door simultaneously. One turn of the key secures the entire cart.

Q: What are the casters like?
A: The cart uses 4-inch heavy-duty polyurethane casters. Two are swivel casters with foot brakes, and two are fixed casters, providing excellent maneuverability on workshop floors.

Q: Is the top tray included?
A: Yes, the standard configuration includes a top tray or lid compartment, which provides a raised edge to keep tools from rolling off during movement.
