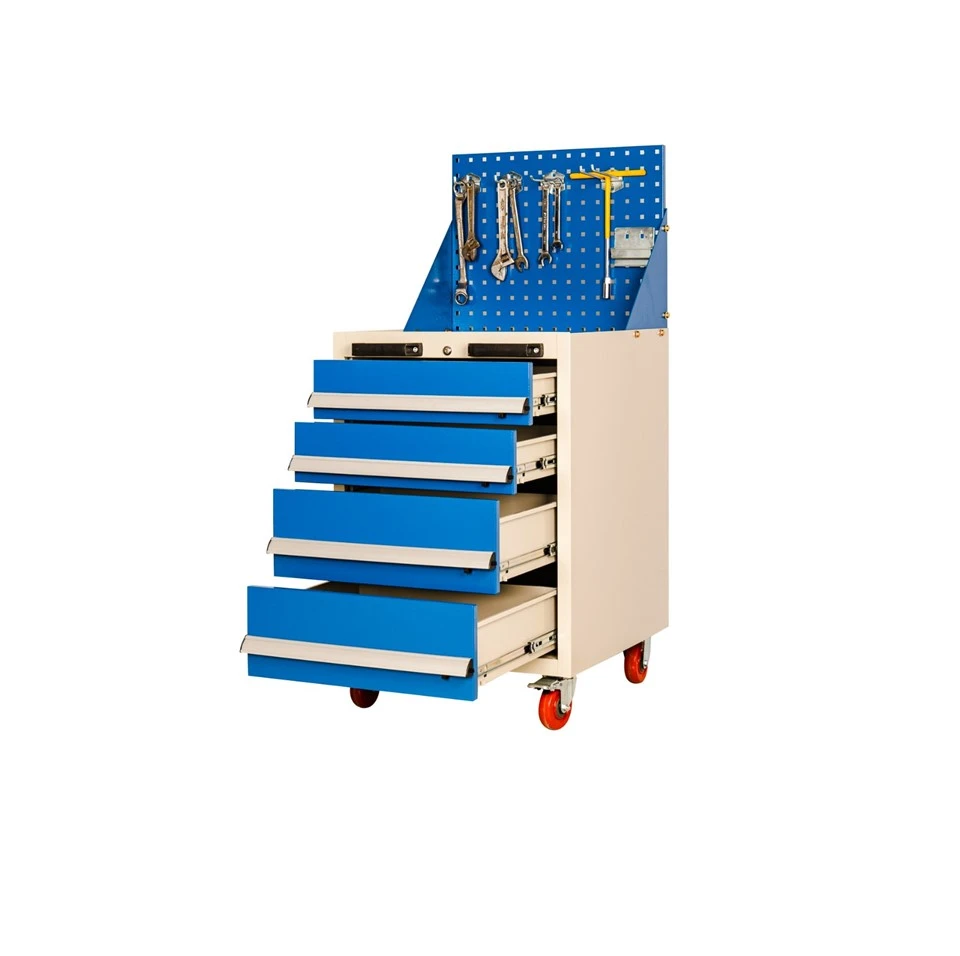

4-Drawer Mobile Tool Cart With Pegboard

Product Introduction

In an aviation maintenance hangar, a loose screw on the floor can cause millions in engine damage-which is why tool control matters so much. The JY-MT90 mobile tool cart is built specifically for FOD (Foreign Object Debris) prevention. Its footprint is H900 x W700 x D450 mm: narrow enough to move between aircraft jigs, yet tall enough to hold a full socket set. The body is made from high-quality cold-rolled steel, with 0.5 mm to 1.0 mm thickness options. It ships knocked down in a modular structure, which helps keep ocean freight costs down and makes it easier to deploy across multiple hangar bays.

Product Feature and Application

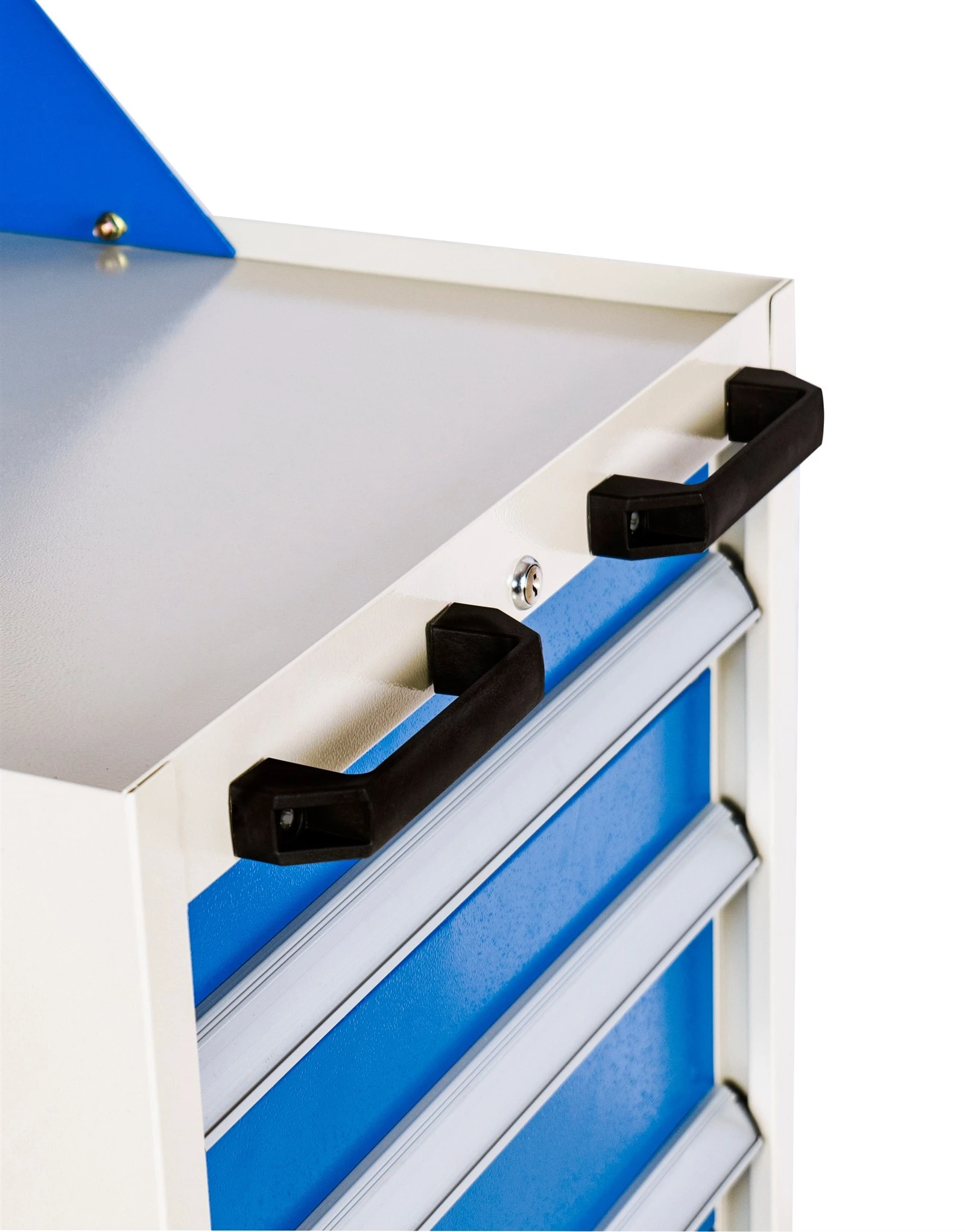

The drawer system is the key safety feature here. When a mechanic pushes this cart across a hangar floor, the last thing you want is a drawer sliding open and spilling tools under a turbine. Each of the four drawers runs on a self-locking ball-bearing slide. The drawer won't move until you physically pull the handle. The central key lock secures all four drawers at once-so at the end of a shift, every tool is locked away and accounted for.

The top surface is a flat steel workbench, ideal for laying out maintenance manuals or a laptop. The rear pegboard lets you hang frequently used wrenches and screwdrivers within sight. The push handle is welded to the frame at an ergonomic angle, and the four heavy-duty casters (two with brakes) roll smoothly over epoxy hangar floors. Lock the brakes and the cart stays put-even on a slightly sloped hangar apron.

Production Details

One real manufacturing headache with mobile tool carts is caster stem reinforcement. When a fully loaded 1.0 mm steel cart rolls over a hangar expansion joint, the impact on the caster stems is violent. We weld a 2.0 mm reinforced steel plate into the base chassis at all four caster mounting points. Without it, the caster stems can tear through the 0.6 mm base plate within a year.

Drawer alignment after shipping is another issue. Because the cart ships knocked down, bent side panels in transit can throw the drawer slides out of line. We use laser-guided welding jigs to keep the frame square, and we pack the flat panels with high-density corner foam to prevent deformation during ocean transit.

Product Qualification

We don't test empty drawers. We load each drawer with 30 kg of solid steel tools, roll the cart over a simulated hangar expansion joint 10,000 times, and check for caster fatigue, drawer self-sliding, and frame twisting. The powder coating goes through a 500-hour salt spray test to make sure it won't rust in humid coastal hangars. For sea freight, the flat-packed cartons are drop-tested from 80 cm to ensure the steel edges and caster plates arrive straight.

Deliver, Shipping and Serving

We flat-pack the panels, drawers, and casters into a compact carton. A 40HQ container holds roughly 600 units. On site, one maintenance worker can assemble the cart in about 15 minutes with the included hardware kit.

For aviation MROs or racing teams, we offer keyed-alike lock systems so the crew chief can use one master key. Custom RAL colors-including safety yellow or team livery colors-and OEM logo printing on the top surface are available. Every bulk order includes a 1.5% spare parts kit (caster wheels, lock cylinders, and slide clips), so your local team can handle replacements without waiting for international shipping.

FAQ

Q: Do the drawers lock automatically when pushed closed?
A: Yes. The self-locking slides engage when the drawer is fully closed, which prevents accidental opening during transport. The central key lock adds another layer of security.

Q: Can the top surface support a heavy toolbox on top?
A: The flat top panel has a stamped stiffener rib and is rated to hold up to 50 kg on the work surface.

Q: Are the casters suitable for rough hangar floors?
A: The polyurethane wheels are designed to roll smoothly on epoxy and concrete floors, and the 2.0 mm caster mounting plate prevents stem tear-out under heavy loads.

Latest News

Our hardware department recently upgraded the caster wheel bearings from standard steel to sealed precision bearings. The new bearings roll much more smoothly over hangar expansion joints and are sealed against dust, which has significantly reduced wheel seizure complaints from our North American aviation clients.
